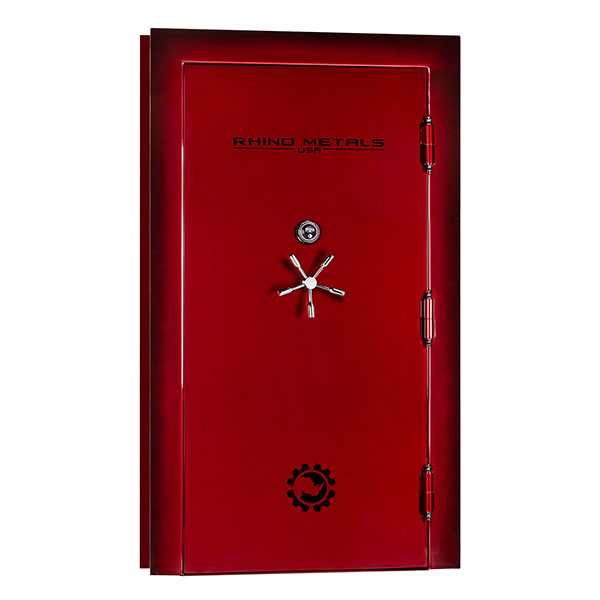

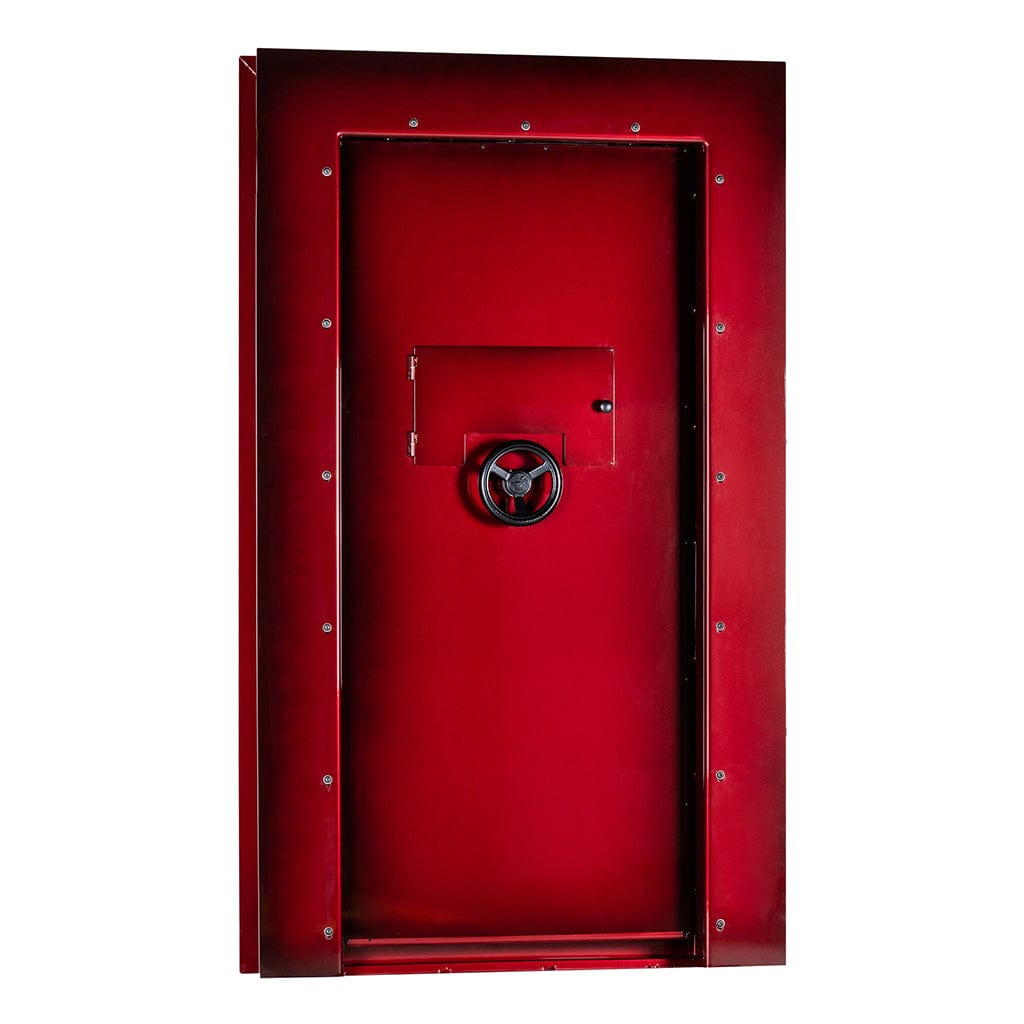

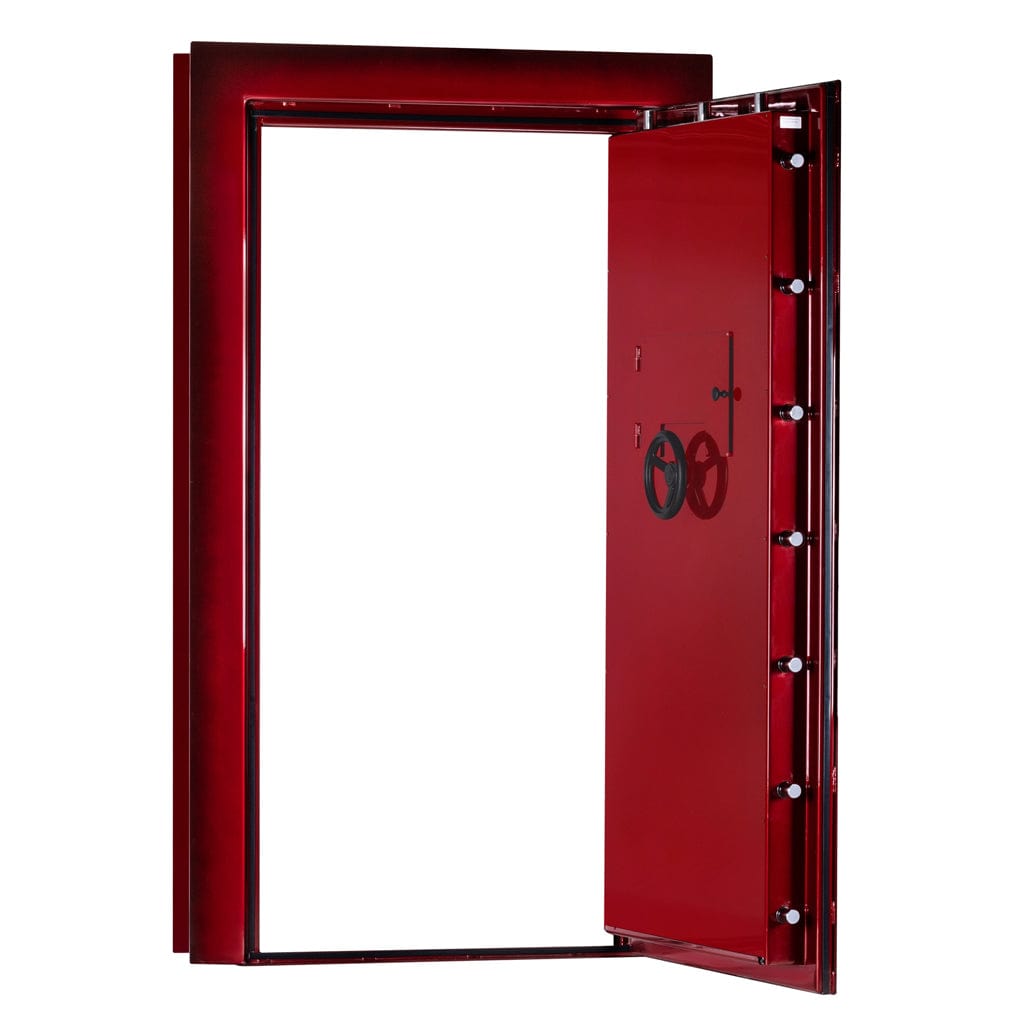

Rhino VD Series Out-Swing Vault Door VD8045GL

Product Description

The Rhino VD8045GL is a 45-inch-wide out-swing vault door from Rhino's VD series, offered with a gloss exterior in black, white, blue, titanium, crimson or bronze, including two-tone options on several. The five-spoke vault-style handle and decorative finials are available with chrome, black, brass or black chrome trim. The body is 5.39 inches thick with a full-coverage quarter-inch steel face, closes on 17 large doorbolts, and carries a published 120-minute fire rating at 1400°F. A UL Listed manual lock with day-lock is included; electronic and biometric locks are optional. The clamshell frame accommodates walls from 8 to 12.5 inches thick, and the door can be ordered for standard or reverse opening.

Features

• 120-minute fire rating at 1400°F, with dual intumescent expanding fire seals
• 17 doorbolts, each 1.25 inches in diameter, with protection on three sides

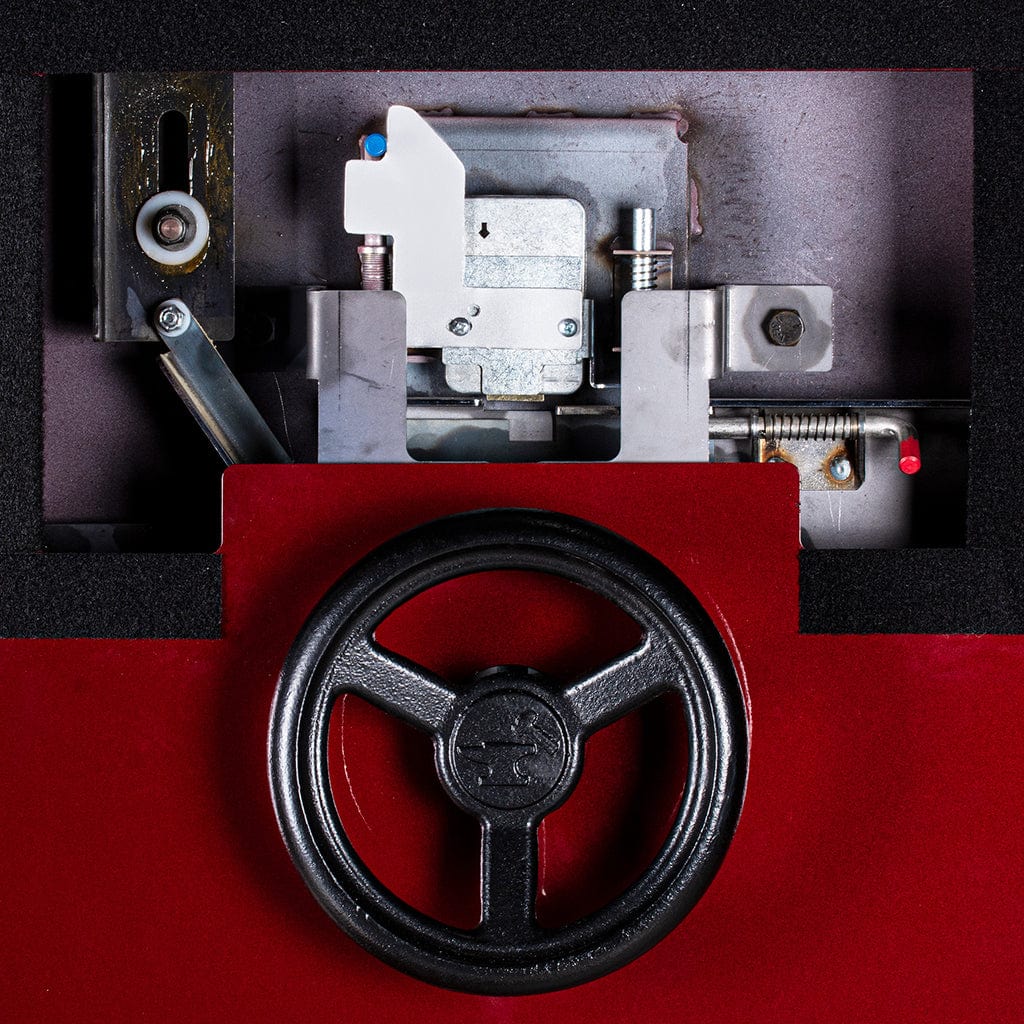

• Ball bearing drill plate and spring-loaded relocker protect the lock
• Patented anti-tamper clutch handle plus an internal release and panic room lock-in mechanism
• Ten gloss exterior colors and four trim finishes
• Clamshell frame for 8 to 12.5 inch walls
• Anchoring with expansion anchors or lag bolts for added security (hardware not included)

Specifications

• Exterior dimensions (H x W x D): 80" x 45" x 8.25" (not including handle; add 3" of depth for handle clearance)
• Weight: 1,180 lbs (approximate net weight)
• Swing: Out-swing, standard or reverse opening
• Fire rating: 120 minutes at 1400°F (ratings can vary based on installation and room construction)
• Door construction: 5.39" thick, full-coverage 1/4" steel face, 12 gauge formed steel
• Doorbolts: 17 x 1.25" diameter, 3-sided
• Lock: UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
• Handle: 5-spoke vault-style handle with decorative finials
• Exterior colors: Black, White, Blue, Blue Two Tone, Titanium, Titanium Two Tone, Crimson, Crimson Two Tone, Bronze, Bronze Two Tone
• Trim colors: Chrome, Black, Brass, Black Chrome
• Wall fit: Clamshell design for 8" to 12.5" thick walls
• Mounting: Expansion anchors or lag bolts for added security (not included)
• Made in: U.S.A. with global components (as published)
