Rhino VD Series In-Swing Vault Door VD8240GL
Rhino VD Series In-Swing Vault Door VD8240GL
SKU: VD8240GL
Delivery: free standard curbside delivery on this safe to the lower 48, confirmed on your order call. Fit check
Will it fit where you want it?
Tell us the room, the floor and the path in: doors, stairs and turns. We'll help you confirm it before you order.
We reply within one business day, Monday–Friday.
What matters on this model
- Exterior dimensions (H x W x D)
- 82" x 40" x 8" (not including handle; add 3" of depth for handle clearance)
- Exterior colors
- Black, White, Blue, Blue Two Tone, Titanium, Titanium Two Tone, Crimson, Crimson Two Tone, Bronze, Bronze Two Tone
- Weight
- 755 lbs (approximate)
- Fire rating
- 90 minutes at 1400°F (ratings can vary based on installation and room construction)
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Doorbolts
- 21 x 1.25" diameter, 3-sided
Specifications
- Brand
- Rhino
- SKU
- VD8240GL
- Product type
- Rhino Vault Door
- Exterior dimensions (H x W x D)
- 82" x 40" x 8" (not including handle; add 3" of depth for handle clearance)
- Weight
- 755 lbs (approximate)
- Swing
- In-swing, standard or reverse opening
- Fire rating
- 90 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction
- 5.79" thick, full-coverage 1/4" steel core, 12 gauge formed steel
- Outer door frame
- 10 gauge steel
- Doorbolts
- 21 x 1.25" diameter, 3-sided
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle
- 5-spoke vault-style handle with decorative finials
- Exterior colors
- Black, White, Blue, Blue Two Tone, Titanium, Titanium Two Tone, Crimson, Crimson Two Tone, Bronze, Bronze Two Tone
- Trim colors
- Chrome, Black, Brass, Black Chrome
- Wall fit
- Clamshell design for 8" to 8.5" thick walls
- Made in
- U.S.A. with global components (as published)
Product details
Product Description
The Rhino VD8240GL is an in-swing vault door from Rhino's VD series, offered with a gloss exterior in black, white, blue, titanium, crimson or bronze, and in two-tone versions of several. A five-spoke vault-style handle and decorative finials give the face a classic look, and the trim can be chrome, black, brass or black chrome. Behind the paint is a 5.79-inch-thick body with a full-coverage quarter-inch steel core, 21 large doorbolts and a published 90-minute fire rating at 1400°F. A UL Listed manual lock with day-lock is included, with electronic and biometric lock options. It is built for 8 to 8.5-inch walls and can be set up for standard or reverse opening.
Features
- 90-minute fire rating at 1400°F, with dual intumescent expanding fire seals
- 21 doorbolts, each 1.25 inches in diameter, with protection on three sides
- Ball bearing drill plate and spring-loaded relocker protect the lock
- Patented anti-tamper clutch handle plus an internal release and panic room lock-in mechanism
- Ten gloss exterior colors and four trim finishes

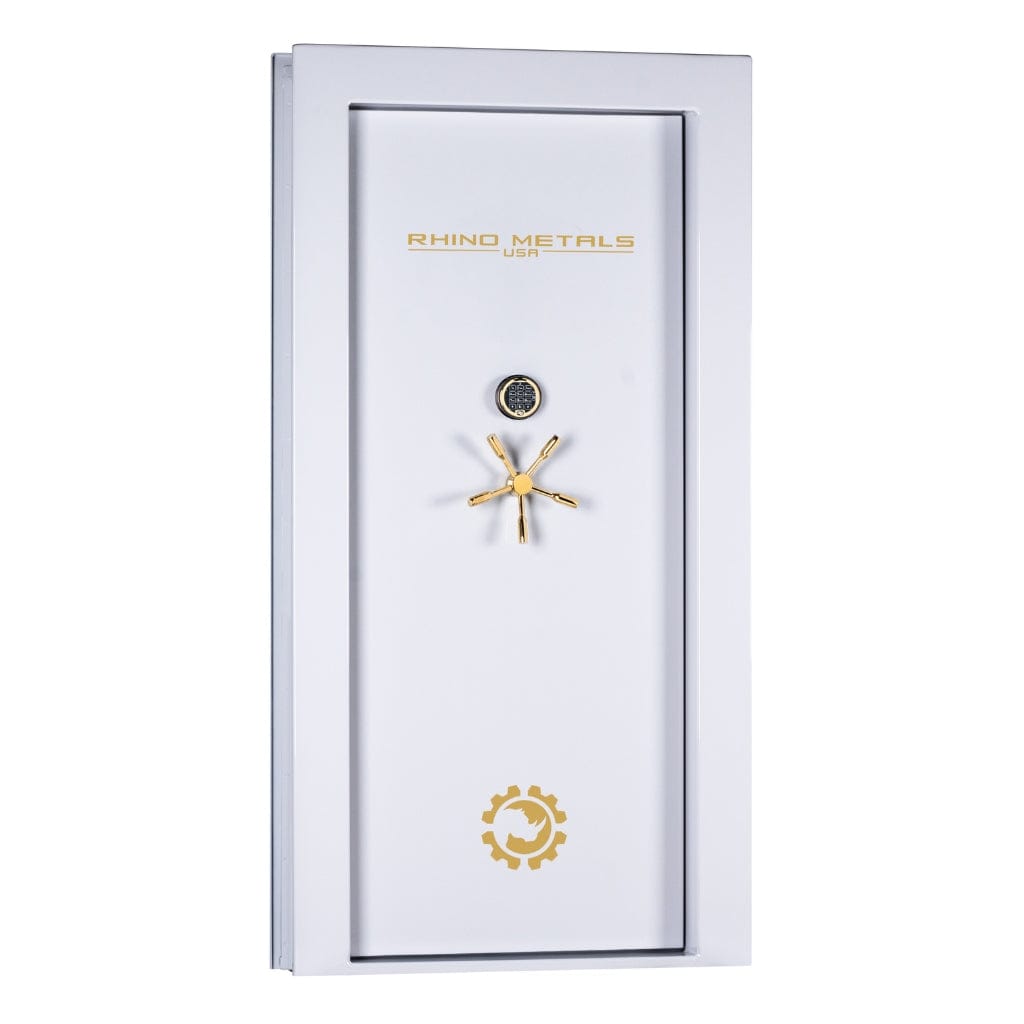

- 5-spoke vault-style handle with decorative finials
- Clamshell frame for 8 to 8.5 inch walls; standard or reverse opening
Specifications
- Exterior dimensions (H x W x D): 82" x 40" x 8" (not including handle; add 3" of depth for handle clearance)
- Weight: 755 lbs (approximate)
- Swing: In-swing, standard or reverse opening
- Fire rating: 90 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction: 5.79" thick, full-coverage 1/4" steel core, 12 gauge formed steel
- Outer door frame: 10 gauge steel
- Doorbolts: 21 x 1.25" diameter, 3-sided
- Lock: UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle: 5-spoke vault-style handle with decorative finials
- Exterior colors: Black, White, Blue, Blue Two Tone, Titanium, Titanium Two Tone, Crimson, Crimson Two Tone, Bronze, Bronze Two Tone
- Trim colors: Chrome, Black, Brass, Black Chrome
- Wall fit: Clamshell design for 8" to 8.5" thick walls
- Made in: U.S.A. with global components (as published)
