Rhino Ironworks Series Out-Swing Vault Door IWVD8045
Rhino Ironworks Series Out-Swing Vault Door IWVD8045
SKU: IWVD8045
Delivery: free standard curbside delivery on this safe to the lower 48, confirmed on your order call. Fit check
Will it fit where you want it?
Tell us the room, the floor and the path in: doors, stairs and turns. We'll help you confirm it before you order.
We reply within one business day, Monday–Friday.
What matters on this model
- Exterior dimensions (H x W x D)
- 80" x 45" x 8.25" (not including handle; add 3" of depth for handle clearance)
- Weight
- 1,180 lbs (approximate net weight)
- Fire rating
- 120 minutes at 1400°F (ratings can vary based on installation and room construction)
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Doorbolts
- 17 x 1.25" diameter, 3-sided
Specifications
- Brand
- Rhino
- SKU
- IWVD8045
- Product type
- Rhino Vault Door
- Exterior dimensions (H x W x D)
- 80" x 45" x 8.25" (not including handle; add 3" of depth for handle clearance)
- Weight
- 1,180 lbs (approximate net weight)
- Swing
- Out-swing, standard or reverse opening
- Fire rating
- 120 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction
- 5.39" thick, full-coverage 1/4" steel face, 12 gauge formed steel
- Doorbolts
- 17 x 1.25" diameter, 3-sided
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle
- Industrial cast hand wheel, patented anti-tamper clutch handle
- Finish
- Antiqued steel
- Wall fit
- Clamshell design for 8" to 12.5" thick walls
- Mounting
- Expansion anchors or lag bolts for added security (not included)
- Made in
- U.S.A. with global components (as published)
Product details
Product Description

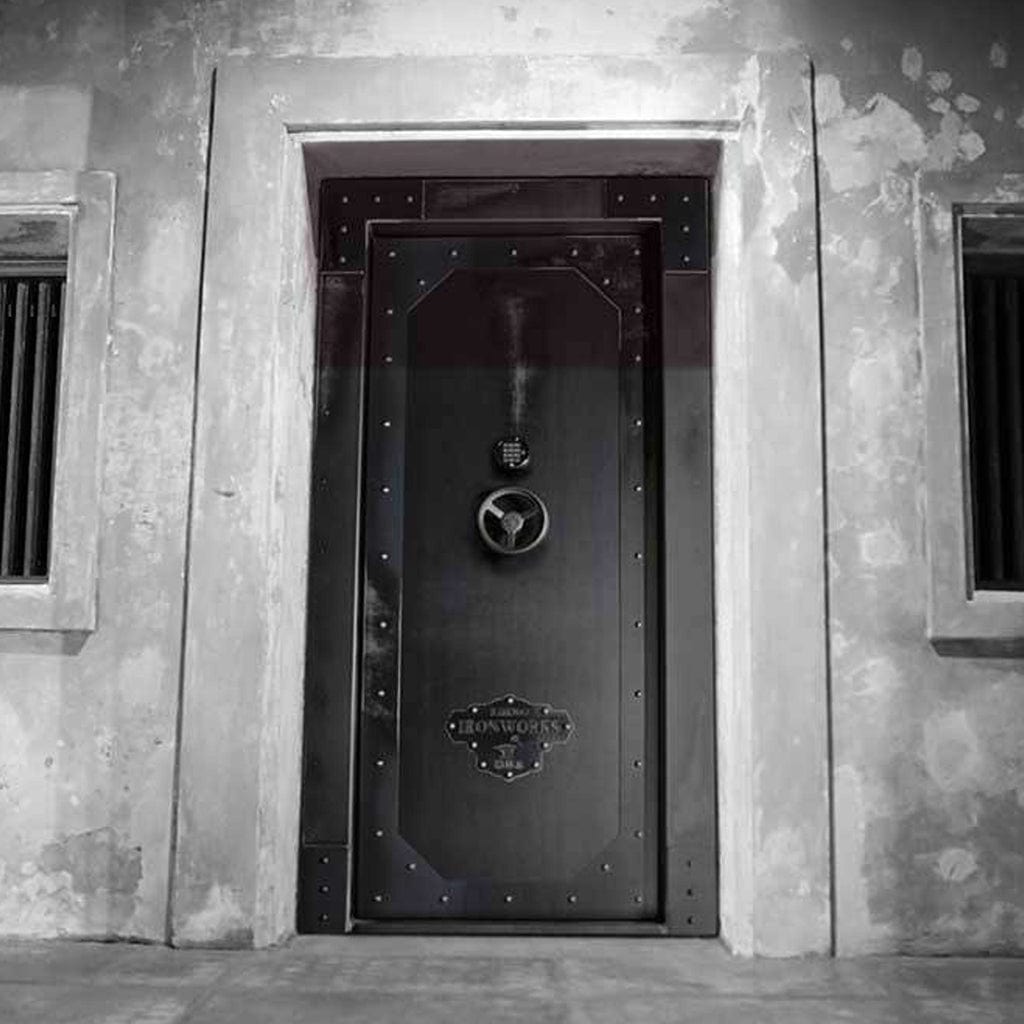

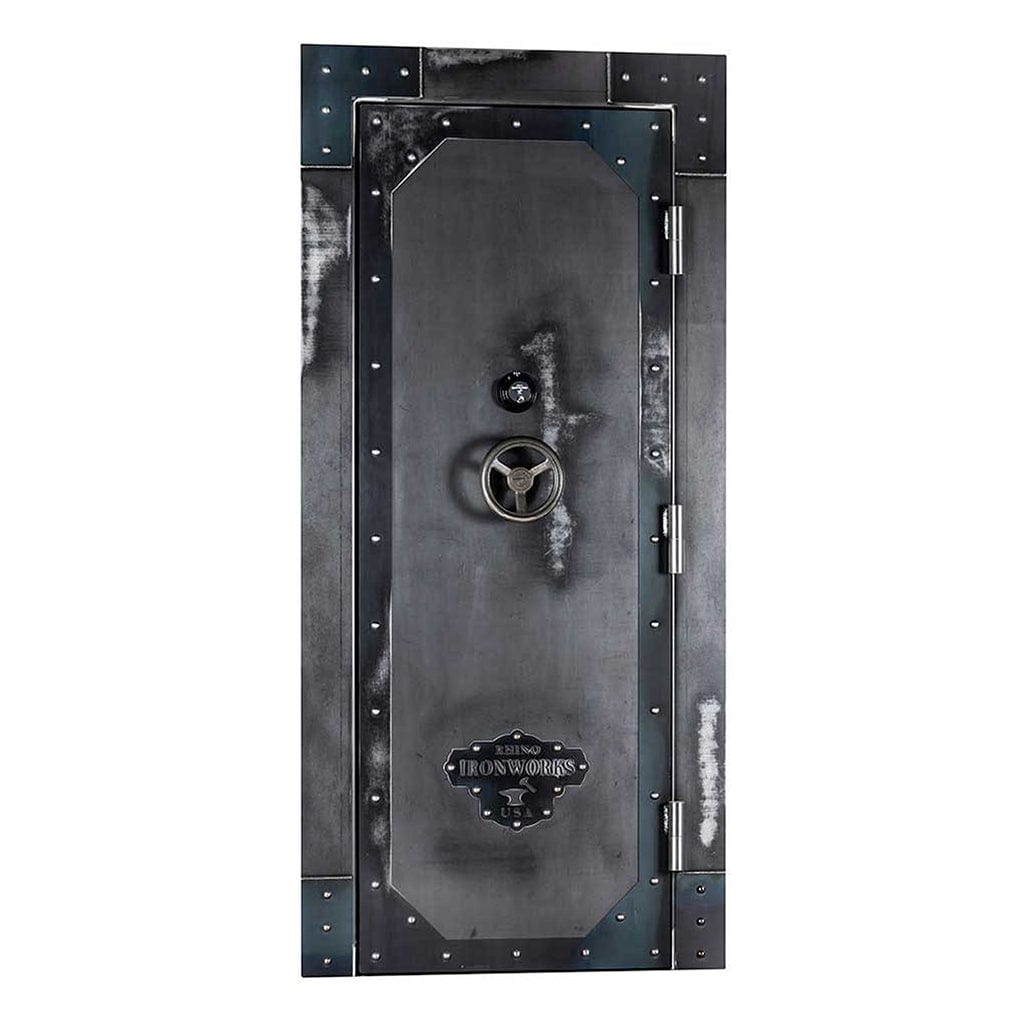

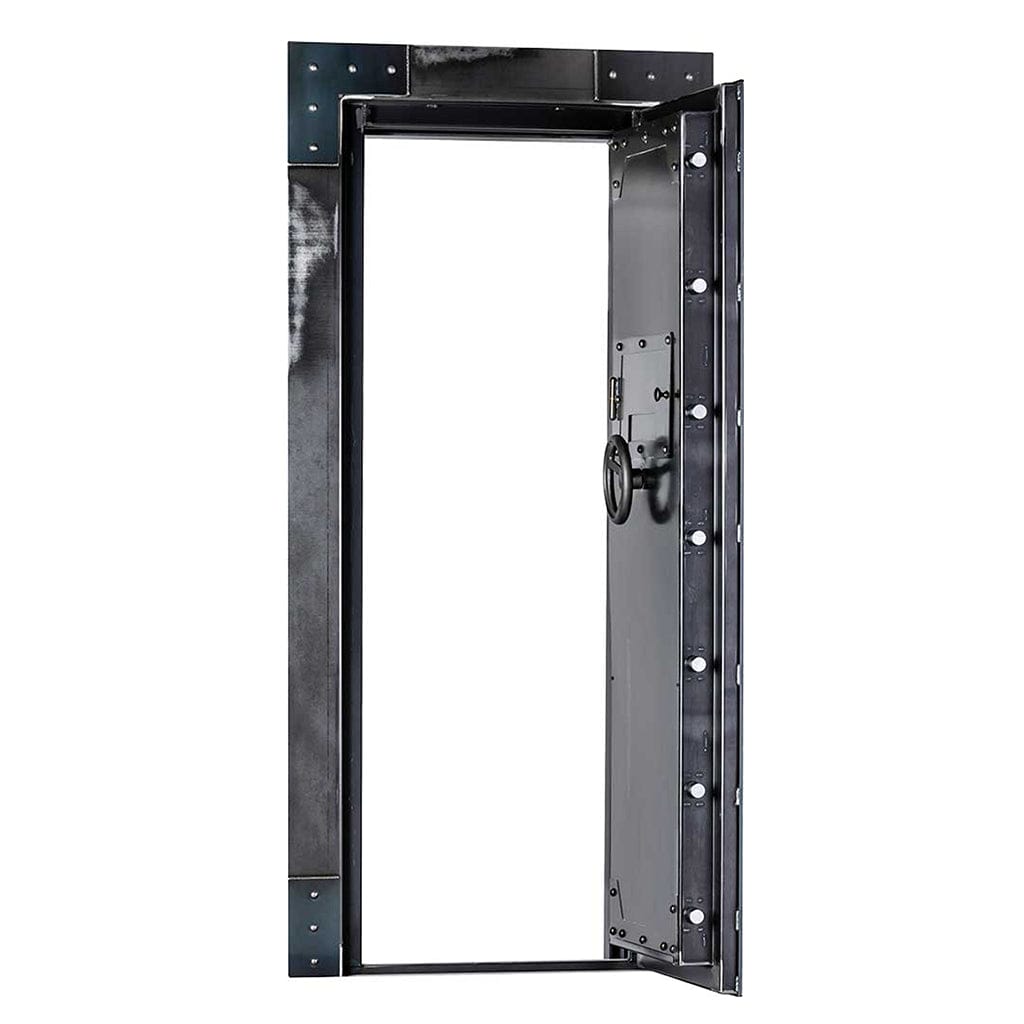

The Rhino IWVD8045 is an out-swing vault door from Rhino's Ironworks line, finished in antiqued steel with a cast industrial hand wheel for a weathered, old-world look. It measures 80 by 45 inches and weighs about 1,180 pounds. The slab is 5.39 inches thick with a full-coverage quarter-inch steel face, 17 large doorbolts, and a published 120-minute fire rating at 1400°F with dual intumescent seals. A UL Listed manual lock with day-lock is included, and electronic or biometric locks are optional. The clamshell frame fits walls from 8 to 12.5 inches thick, the door can open standard or reverse, and an internal release is built in for anyone inside.
Features
- 120-minute fire rating at 1400°F, with dual intumescent expanding fire seals
- 17 doorbolts, each 1.25 inches in diameter, with protection on three sides

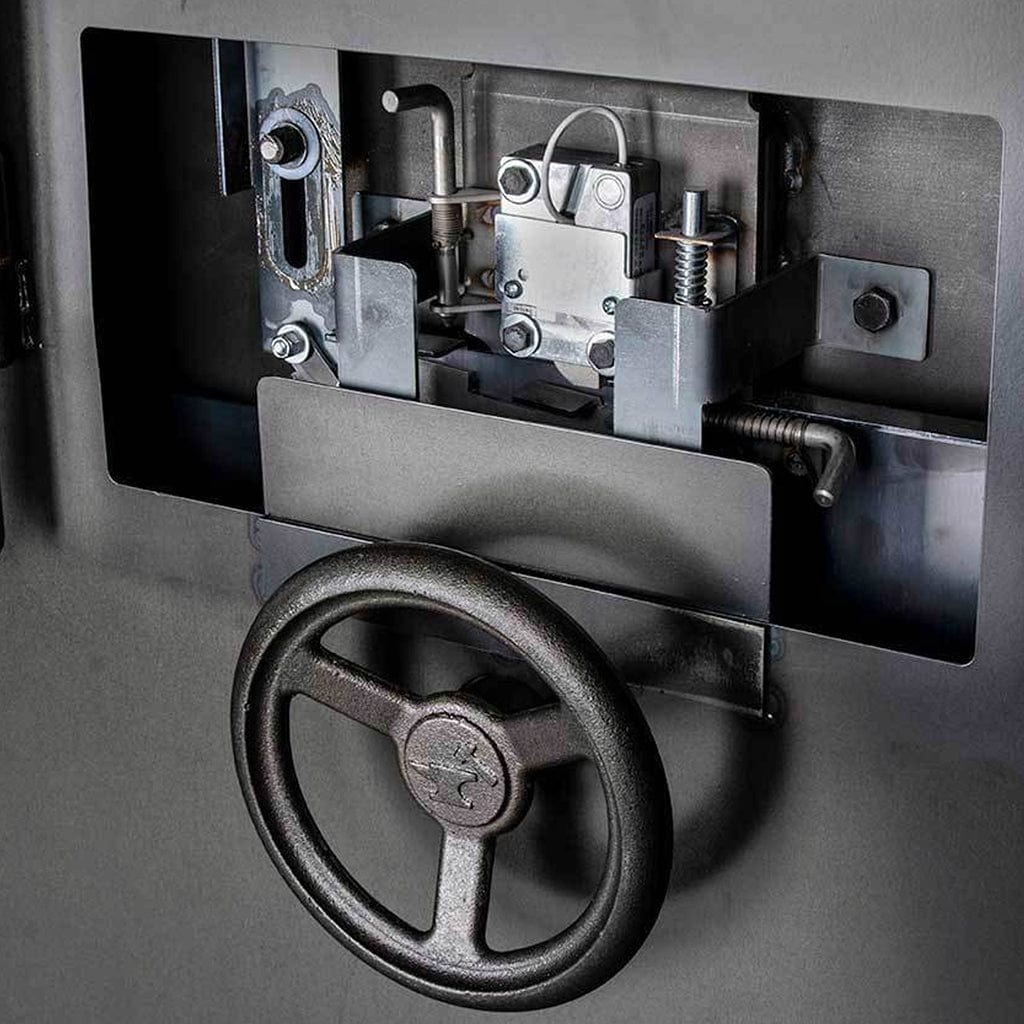

- Ball bearing drill plate and spring-loaded relocker protect the lock; tempered glass relocker adds backup
- Patented anti-tamper clutch handle on a cast hand wheel
- Internal release and panic room lock-in mechanism
- Clamshell frame for 8 to 12.5 inch walls
- Antiqued finish; standard or reverse opening
Specifications
- Exterior dimensions (H x W x D): 80" x 45" x 8.25" (not including handle; add 3" of depth for handle clearance)
- Weight: 1,180 lbs (approximate net weight)
- Swing: Out-swing, standard or reverse opening
- Fire rating: 120 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction: 5.39" thick, full-coverage 1/4" steel face, 12 gauge formed steel
- Doorbolts: 17 x 1.25" diameter, 3-sided
- Lock: UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle: Industrial cast hand wheel, patented anti-tamper clutch handle
- Finish: Antiqued steel
- Wall fit: Clamshell design for 8" to 12.5" thick walls
- Mounting: Expansion anchors or lag bolts for added security (not included)
- Made in: U.S.A. with global components (as published)
