Rhino VD Series In-Swing Vault Door VD8240
Rhino VD Series In-Swing Vault Door VD8240
SKU: VD8240
Delivery: free standard curbside delivery on this safe to the lower 48, confirmed on your order call. Fit check
Will it fit where you want it?
Tell us the room, the floor and the path in: doors, stairs and turns. We'll help you confirm it before you order.
We reply within one business day, Monday–Friday.
What matters on this model
- Exterior dimensions (H x W x D)
- 82" x 40" x 8" (not including handle; add 3" of depth for handle clearance)
- Exterior colors
- Textured Granite, Textured Blackstone, Textured Cherrystone
- Weight
- 755 lbs (approximate)
- Fire rating
- 90 minutes at 1400°F (ratings can vary based on installation and room construction)
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Doorbolts
- 21 x 1.25" diameter, 3-sided
Specifications
- Brand
- Rhino
- SKU
- VD8240
- Product type
- Rhino Vault Door
- Exterior dimensions (H x W x D)
- 82" x 40" x 8" (not including handle; add 3" of depth for handle clearance)
- Weight
- 755 lbs (approximate)
- Swing

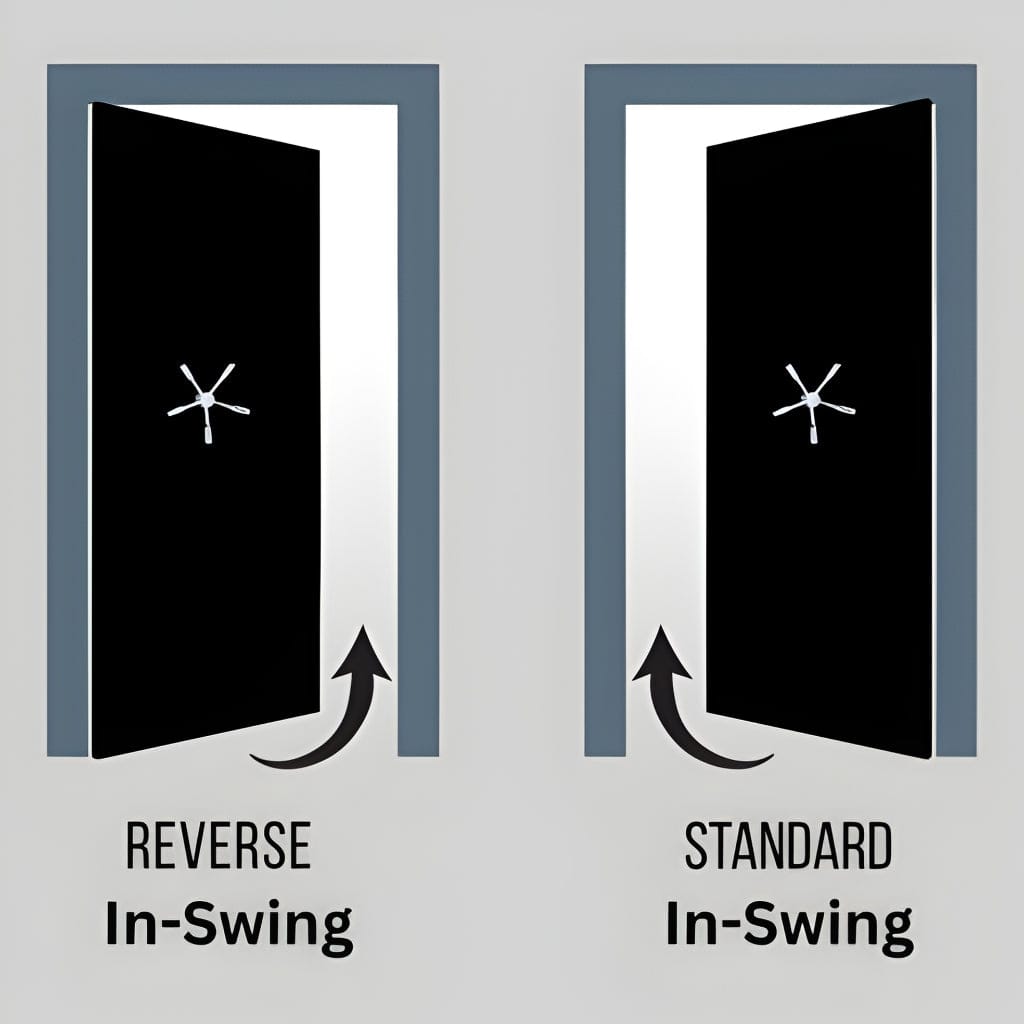

- In-swing, standard or reverse opening
- Fire rating
- 90 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction
- 5.79" thick, full-coverage 1/4" steel core, 12 gauge formed steel
- Outer door frame
- 10 gauge steel
- Doorbolts
- 21 x 1.25" diameter, 3-sided
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle
- 5-spoke vault-style handle with decorative finials
- Exterior colors
- Textured Granite, Textured Blackstone, Textured Cherrystone
- Trim colors
- Chrome, Black, Brass, Black Chrome
- Wall fit
- Clamshell design for 8" to 8.5" thick walls
- Made in
- U.S.A. with global components (as published)
Product details
Product Description
The Rhino VD8240 is an in-swing vault door from Rhino's VD series, offered with a textured exterior in Granite, Blackstone or Cherrystone and a choice of chrome, black, brass or black chrome trim. The five-spoke vault-style handle and decorative finials keep the look traditional. The slab is 5.79 inches thick with a full-coverage quarter-inch steel core, and 21 large doorbolts secure it on three sides. It is published with a 90-minute fire rating at 1400°F. A UL Listed manual lock with day-lock comes included, and electronic and biometric locks can be selected instead. The clamshell frame is made for 8 to 8.5-inch walls, and the door can be ordered for standard or reverse opening.
Features
- 90-minute fire rating at 1400°F, with dual intumescent expanding fire seals
- 21 doorbolts, each 1.25 inches in diameter, with protection on three sides
- Ball bearing drill plate and spring-loaded relocker protect the lock
- Patented anti-tamper clutch handle plus an internal release and panic room lock-in mechanism
- Three textured exterior colors and four trim finishes
- 5-spoke vault-style handle with decorative finials
- Clamshell frame for 8 to 8.5 inch walls; standard or reverse opening
Specifications
- Exterior dimensions (H x W x D): 82" x 40" x 8" (not including handle; add 3" of depth for handle clearance)
- Weight: 755 lbs (approximate)
- Swing: In-swing, standard or reverse opening
- Fire rating: 90 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction: 5.79" thick, full-coverage 1/4" steel core, 12 gauge formed steel
- Outer door frame: 10 gauge steel
- Doorbolts: 21 x 1.25" diameter, 3-sided
- Lock: UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle: 5-spoke vault-style handle with decorative finials
- Exterior colors: Textured Granite, Textured Blackstone, Textured Cherrystone
- Trim colors: Chrome, Black, Brass, Black Chrome
- Wall fit: Clamshell design for 8" to 8.5" thick walls
- Made in: U.S.A. with global components (as published)
Before you order
Is delivery free?
Standard curbside delivery is free on eligible items to the 48 contiguous states. Some remote or limited-access addresses carry a surcharge, which we tell you before your card is charged. The carrier calls you to book a delivery appointment. Inside delivery, placement and anchoring can be quoted separately where a local provider is available. See Shipping & Delivery.
When is my card charged?
Only after we've confirmed the order, the lead time and the delivery details with you by phone. If the timing doesn't work for you, we cancel and release the authorization. Nothing is charged.
What should I check before ordering?
Measure the doorways, stairs and turns on the path in, and the spot where the safe will sit, including the floor it sits on. Not sure? Call (330) 422-3991 and we'll go through it with you.
Is there sales tax?
We currently collect sales tax only on orders delivered to Ohio. Depending on your state, you may owe use tax.
