Rhino VD Series Out-Swing Vault Door VD8045
Rhino VD Series Out-Swing Vault Door VD8045
SKU: VD8045
Delivery: free standard curbside delivery on this safe to the lower 48, confirmed on your order call. Fit check
Will it fit where you want it?
Tell us the room, the floor and the path in: doors, stairs and turns. We'll help you confirm it before you order.
We reply within one business day, Monday–Friday.
What matters on this model
- Exterior dimensions (H x W x D)
- 80" x 45" x 8.25" (not including handle; add 3" of depth for handle clearance)
- Exterior colors
- Textured Granite, Textured Blackstone, Textured Cherrystone
- Weight
- 1,180 lbs (approximate net weight)
- Fire rating
- 120 minutes at 1400°F (ratings can vary based on installation and room construction)
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Doorbolts
- 17 x 1.25" diameter, 3-sided
Specifications
- Brand
- Rhino
- SKU
- VD8045
- Product type
- Rhino Vault Door
- Exterior dimensions (H x W x D)
- 80" x 45" x 8.25" (not including handle; add 3" of depth for handle clearance)
- Weight
- 1,180 lbs (approximate net weight)
- Swing
- Out-swing, standard or reverse opening
- Fire rating
- 120 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction
- 5.39" thick, full-coverage 1/4" steel face, 12 gauge formed steel
- Doorbolts
- 17 x 1.25" diameter, 3-sided
- Lock
- UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle
- 5-spoke vault-style handle with decorative finials
- Exterior colors
- Textured Granite, Textured Blackstone, Textured Cherrystone
- Trim colors
- Chrome, Black, Brass, Black Chrome
- Wall fit
- Clamshell design for 8" to 12.5" thick walls
- Mounting
- Expansion anchors or lag bolts for added security (not included)
- Made in
- U.S.A. with global components (as published)
Product details
Product Description

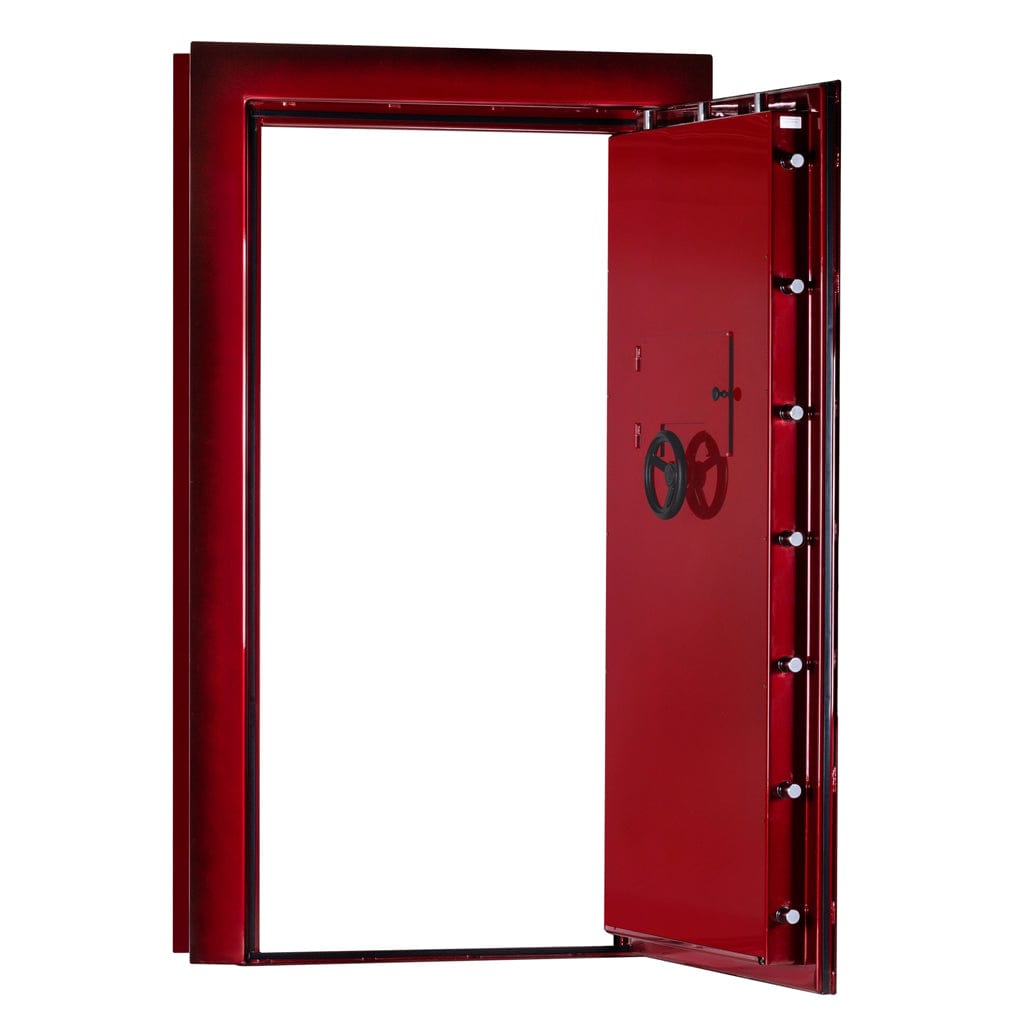

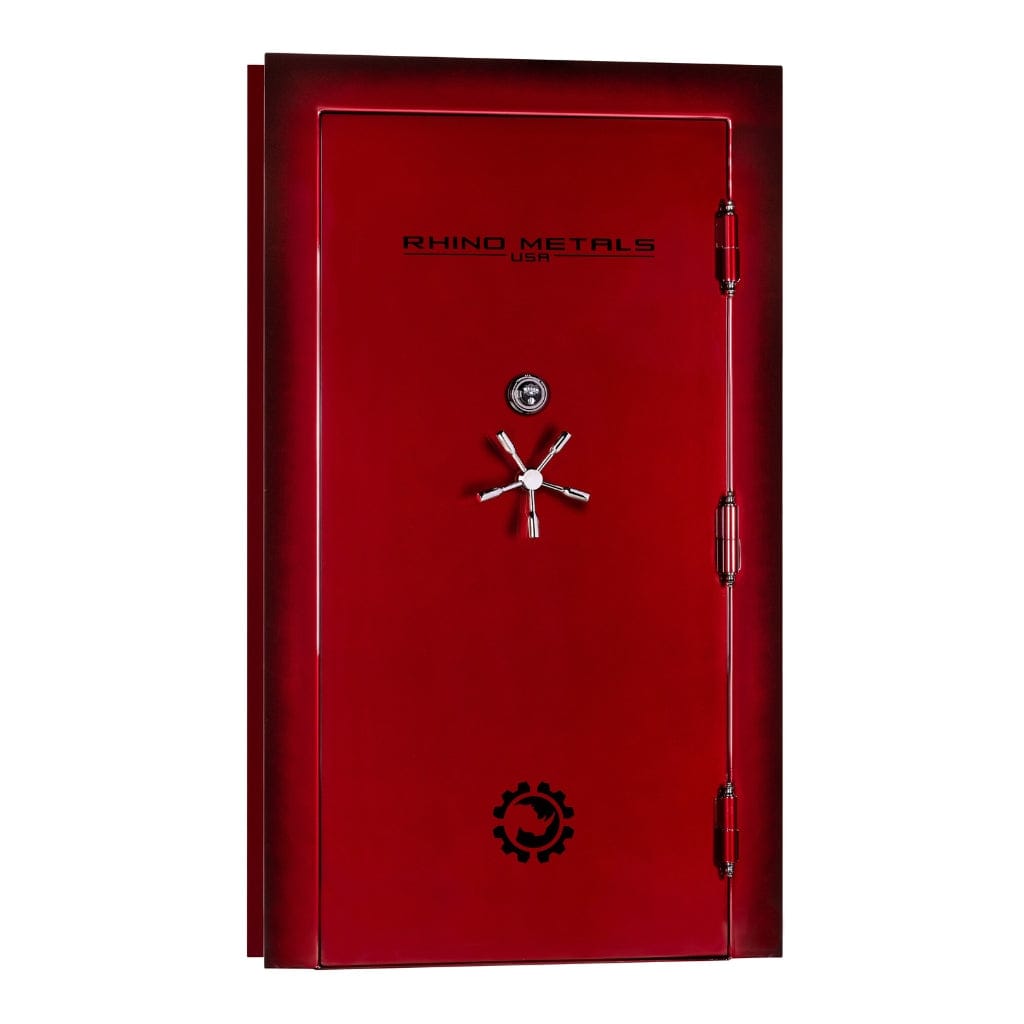

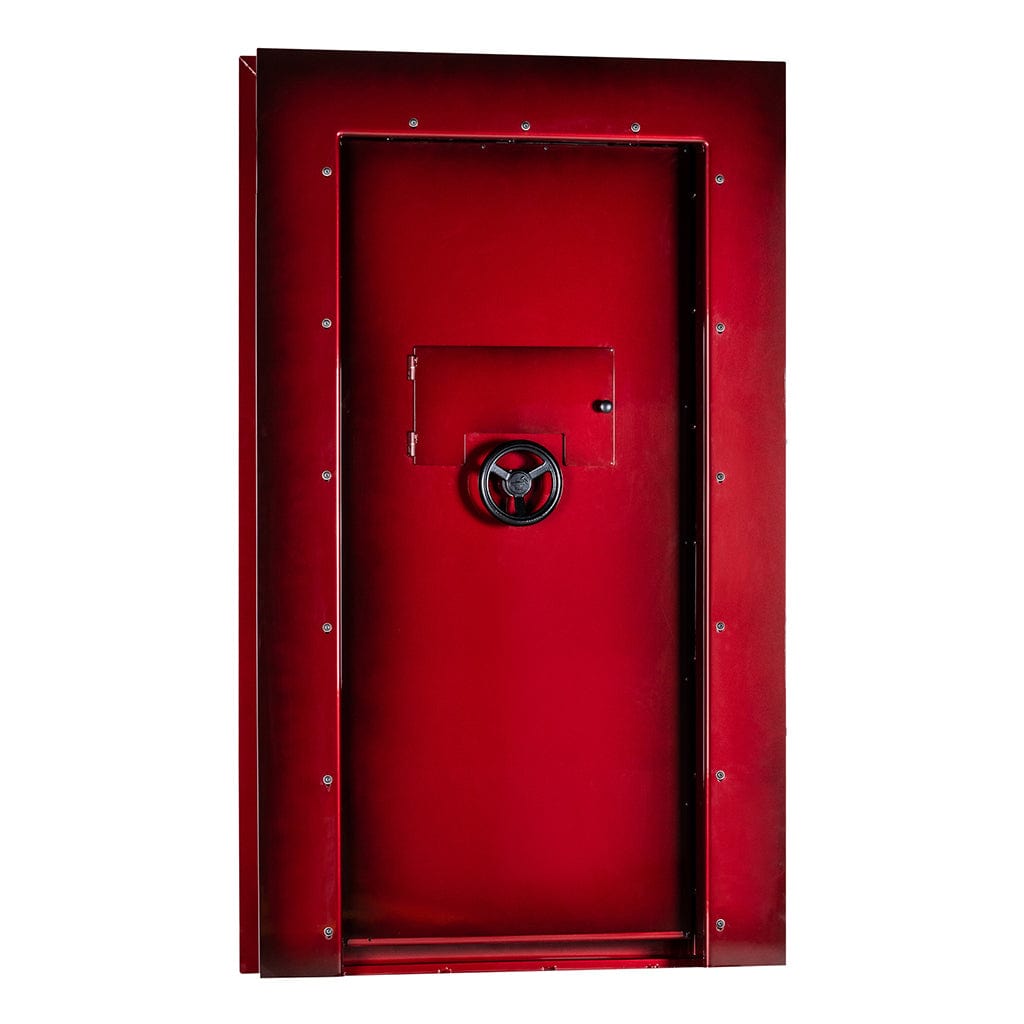

The Rhino VD8045 is an out-swing vault door from Rhino's VD series, offered with a textured Granite, Blackstone or Cherrystone exterior and chrome, black, brass or black chrome trim. It stands 80 inches tall and 45 inches wide, with a five-spoke vault-style handle and decorative finials. The slab is 5.39 inches thick with a full-coverage quarter-inch steel face and 17 large doorbolts, and it carries a published 120-minute fire rating at 1400°F. A UL Listed manual lock with day-lock is included, with electronic and biometric locks as options. The clamshell frame fits walls from 8 to 12.5 inches thick, and the door can be ordered for standard or reverse opening.
Features
- 120-minute fire rating at 1400°F, with dual intumescent expanding fire seals
- 17 doorbolts, each 1.25 inches in diameter, with protection on three sides

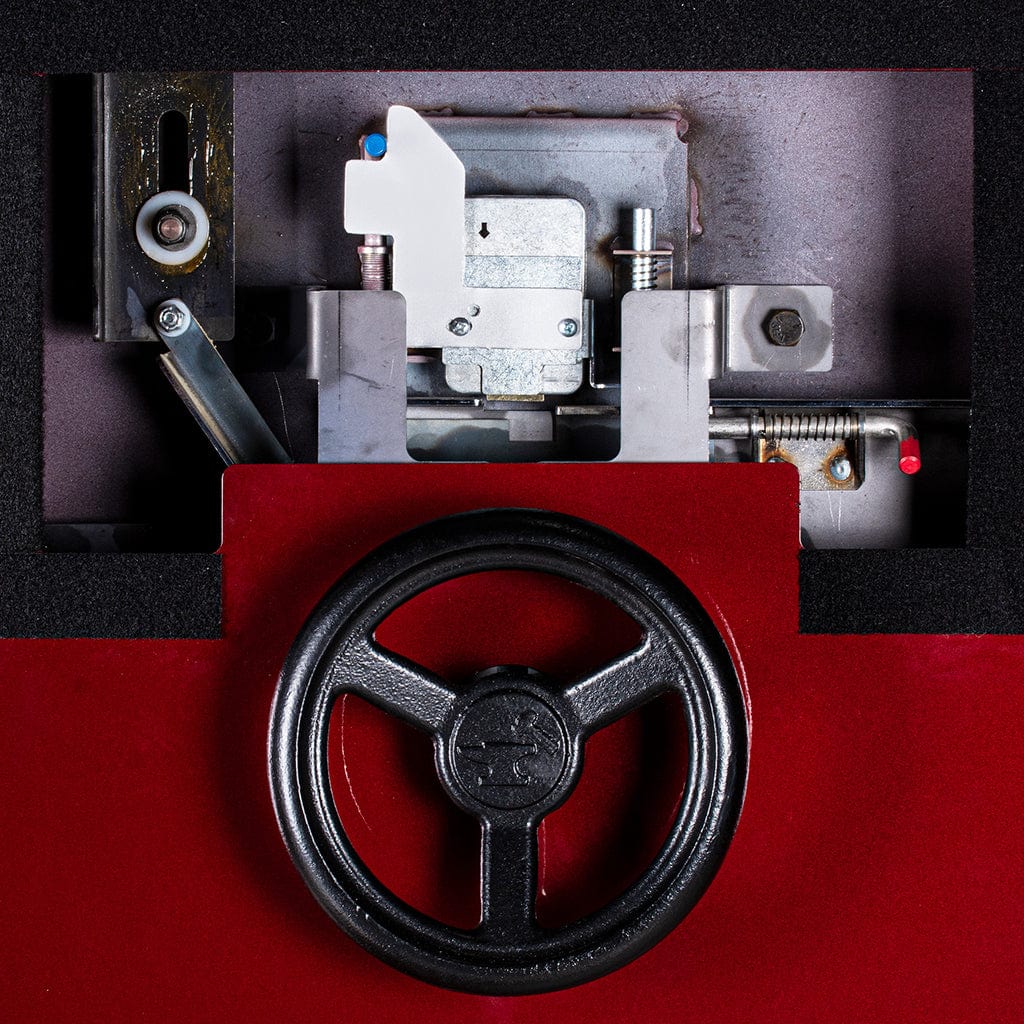

- Ball bearing drill plate and spring-loaded relocker protect the lock
- Patented anti-tamper clutch handle plus an internal release and panic room lock-in mechanism
- Three textured exterior colors and four trim finishes
- Clamshell frame for 8 to 12.5 inch walls
- Anchoring with expansion anchors or lag bolts for added security (hardware not included)
Specifications
- Exterior dimensions (H x W x D): 80" x 45" x 8.25" (not including handle; add 3" of depth for handle clearance)
- Weight: 1,180 lbs (approximate net weight)
- Swing: Out-swing, standard or reverse opening
- Fire rating: 120 minutes at 1400°F (ratings can vary based on installation and room construction)
- Door construction: 5.39" thick, full-coverage 1/4" steel face, 12 gauge formed steel
- Doorbolts: 17 x 1.25" diameter, 3-sided
- Lock: UL Listed manual lock with day-lock included; UL Listed direct-drive electronic lock or UL Listed biometric lock with keypad backup available as options
- Handle: 5-spoke vault-style handle with decorative finials
- Exterior colors: Textured Granite, Textured Blackstone, Textured Cherrystone
- Trim colors: Chrome, Black, Brass, Black Chrome
- Wall fit: Clamshell design for 8" to 12.5" thick walls
- Mounting: Expansion anchors or lag bolts for added security (not included)
- Made in: U.S.A. with global components (as published)
